How to build the best Raspberry Pi digital picture frame with Bookworm Wayland (2025 Edition, Pi 2/3/4/5)

I bought my first digital picture frame almost twenty years ago and have been a fan ever since.

If you like taking photos of people, animals, landscapes, or other things, you shouldn’t bury them on your phone. And please, don’t settle for one of those tiny photo frames.

Instead, you should have a 24 or even 32-inch frame, ideally with a 4 K resolution, to enjoy them daily with your family or just for yourself.

But the best digital picture frame isn’t something you can buy. You have to build it yourself.

Over the years, I’ve reviewed many photo frames, and the difference in quality compared to a DIY frame is astounding.

Manufacturers often compromise to keep prices low and volumes high. Luxurious frames don’t sell enough and are quickly discontinued, leaving users with outdated software or cloud services.

And let’s be honest. Some high-end frames are just glorified TVs with unnecessary compromises or lack of features that you want in a picture frame.

Trust me, friends don’t let friends buy overpriced digital photo frames—they build their own.

Building your own frame isn’t just rewarding; it’s also fun and surprisingly easy.

However, be warned: once you dive into the world of custom digital frames, you might get hooked on tweaking and perfecting your setup. But hey, isn’t that what hobbies are all about?

This website has over a hundred articles. I started it to keep track of my own solutions and to give back to the incredibly helpful community. However, tech evolves, and sometimes, my old instructions become outdated due to software updates or system changes.

My previous photo frame project was built using the Raspberry Pi operating system Buster, which is now two generations old. The current version, Bookworm, brought changes that initially deterred me from upgrading.

However, with the help of amazing people like Paddy, Helge, and Jeff, it’s time for a fresh tutorial on building a Raspberry Pi-powered digital picture frame. As always, I am standing on the shoulders of these giants.

Believe me when I say this is still the best frame money can’t buy (off-the-shelf).

This frame features cross-fading transitions (the only ones you’ll ever need), incredibly clever and beautiful matting options for all formats, Home Assistant control, and no monthly cloud service fees because everything is on-premise. Plus, it’s built for stunning 4K resolutions.

Did I mention you can’t buy a frame like this in the market?

So, without further ado, here are the instructions for building a Raspberry Pi-powered digital picture frame that you can customize to your heart’s content. Let’s get started!

For more background, I recommend reading the original Raspberry Pi setup article and the background article on PictureFrame, the software that creates those wonderful image transitions.

Installation of Raspberry Pi OS

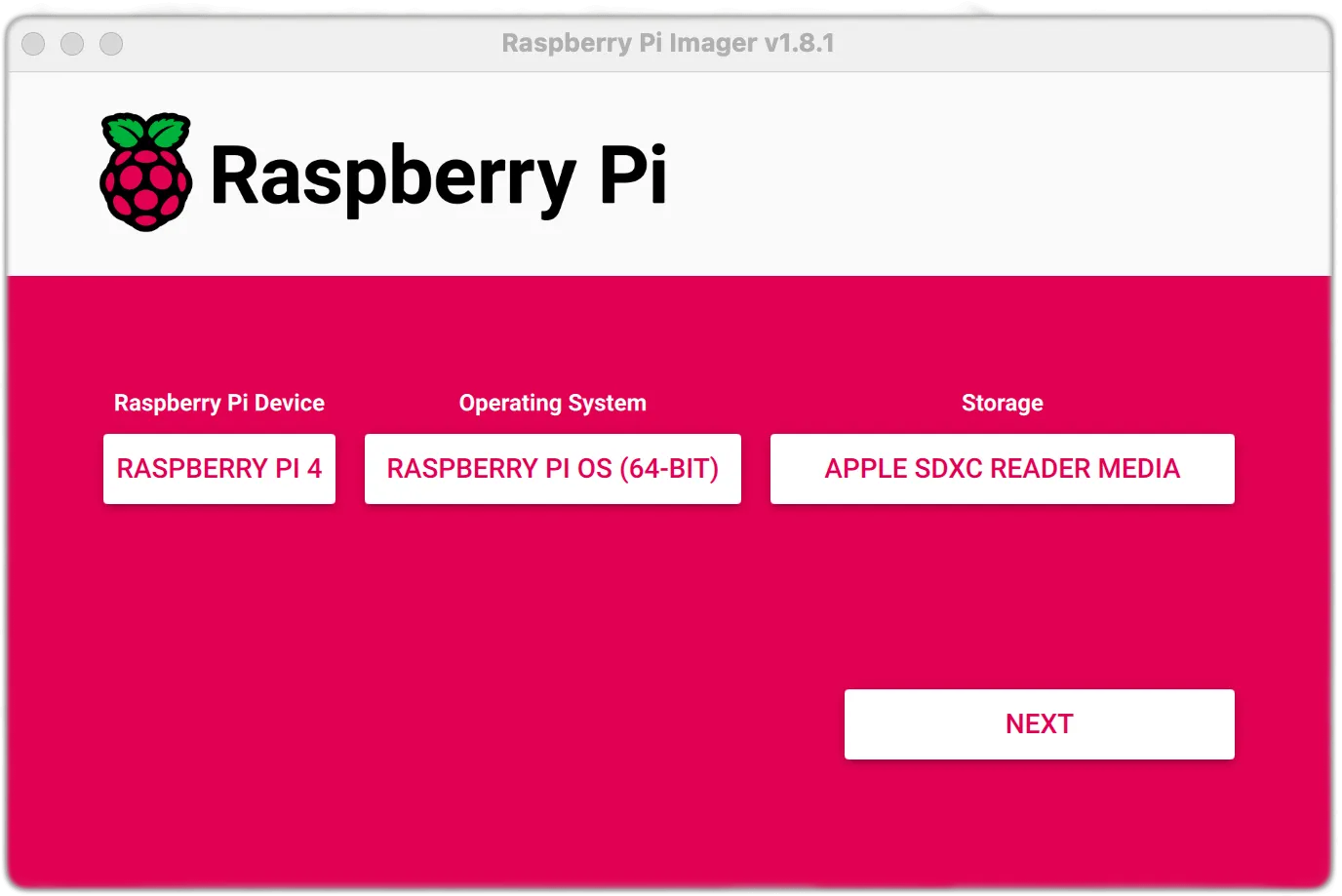

The easiest way to install Raspberry Pi is to download the Raspberry Pi Imager.

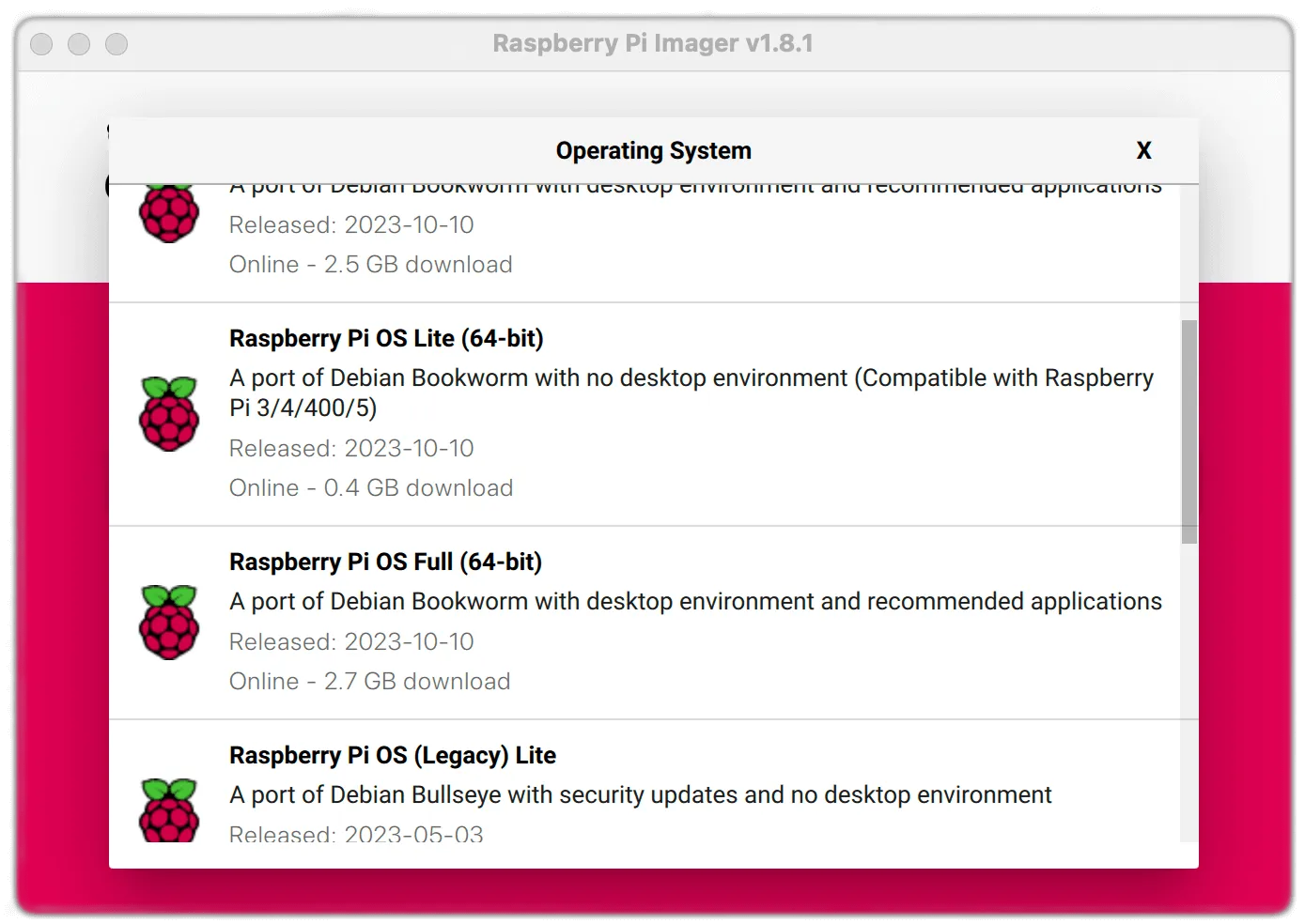

Select your Raspberry Pi model, and choose Raspberry Pi OS Bookworm Lite (64-bit) under “Operating System” and “Raspberry Pi (other)”.

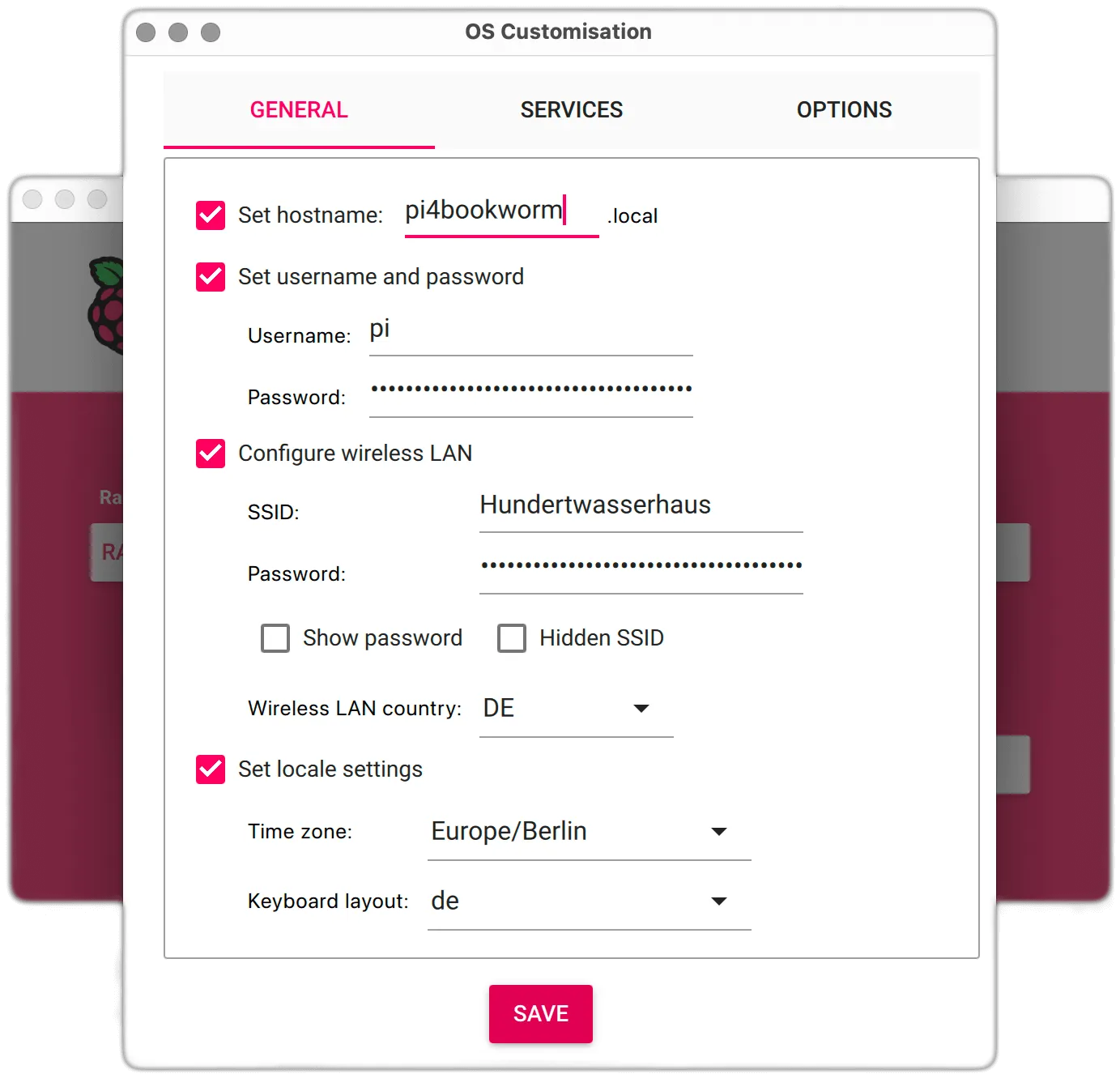

Under “Storage”, select your SD card. Click “Next”, add your OS customization data, and enter some default settings, such as your Pi’s name (hostname), password, Wi-Fi, and language and time settings.

Finish by clicking on “Write”.

Once you’re done, remove the SD card from your Mac/PC and insert it into your Raspberry Pi. Connect your power supply and wait for the boot process to finish.

In my original configuration article, there are a lot more details, so if you are struggling with this part, go back and take the time to read it.

Open a Terminal on your Mac/Linux/Windows machine.

The first thing you need to do is find out the IP address of your newly installed Raspberry Pi.

You can do this with software like the Angry IP Scanner or Advanced IP Scanner (for Windows) but actually the easiest way is to just enter

arp -a

in your Terminal and get a list of all your network devices. Find yours, which will look something like

pi5.fritz.box (192.168.178.74) at 2c:cf:67:3d:38:9f on en8 ifscope [ethernet]

and then type the ssh command with your IP address like

ssh pi@192.168.178.74

The default password is “pi” (or whatever you specified in the Raspberry Pi Imager).

Enter

sudo apt update && sudo apt upgrade -y

to run the latest updates.

Then, install a few needed packages with (this is one line)

sudo apt install git libsdl2-dev xwayland labwc wlr-randr -y

Open the system configuration with

sudo raspi-config

Make the following changes:

• Under 1 System Options -> S5 Boot -> B2 Console Autologin as ‘pi’ user
• Under 5 Localisation Options -> L1 Locale -> add whatever your country and language is. You might also want to add “en_US.UTF-8” to avoid the occasional (but harmless) error message.

Go back, finish, and reboot. Connect again via Terminal.

Installing Samba network settings

Install the file-sharing software using the SMB (SAMBA) network protocol. This allows you to access your Raspberry Pi on your network to add images and program files easily and remotely.

In Terminal, install Samba, add a user and your password

sudo apt install samba -y

sudo smbpasswd -a pi

Change the SAMBA config file with

sudo nano /etc/samba/smb.conf

I recommend deleting every line by typing CTRL + K. Just hold down the keys until all lines are deleted.

Then, copy and paste this text into the file:

[global]
security = user
workgroup = WORKGROUP
server role = standalone server
map to guest = never
encrypt passwords = yes
obey pam restrictions = no
client min protocol = SMB2
client max protocol = SMB3

#The following seven lines is finetuning for macOS users. I you are only using Windows, you don't need to include them. But they don't harm either.

vfs objects = catia fruit streams_xattr
fruit:metadata = stream
fruit:model = RackMac
fruit:posix_rename = yes
fruit:veto_appledouble = no
fruit:wipe_intentionally_left_blank_rfork = yes
fruit:delete_empty_adfiles = yes

[pi]
comment = Pi Directories
browseable = yes
path = /home/pi
read only = no
create mask = 0775
directory mask = 0775

Hit CTRL + O to write the file to disk, then CTRL + X to exit the editor.

If you have trouble with the Samba configuration, please look at my more detailed article here.

Finally, restart SAMBA:

sudo /etc/init.d/smbd restart

You should now see the name of your Raspberry Pi in your network. Connect to it using your username “pi” (in our example) and your password.

Whenever you reboot your Raspberry Pi, file sharing will automatically start.

Note: If you have a problem editing the SAMBA config file, look at this article.

Installing Pi3D PictureFrame

Now, install the best image viewer software that no money can buy, the one and only Pi3D PictureFrame!

You should definitely read the main article on this wonderfully handcrafted piece of software.

What is new with Bookworm is that it requires a virtual Python environment to prevent any unintended spillover from PictureFrame onto other Python applications.

Install the Python virtual environment with

mkdir venv_picframe

python -m venv /home/pi/venv_picframe

source venv_picframe/bin/activate

Now, install PictureFrame with

pip install picframe

If you see something like this, it’s a good sign.

Successfully installed IPTCInfo3-2.1.4 Pillow-11.0.0 PyYAML-6.0.2 defusedxml-0.7.1 ninepatch-0.2.0 numpy-2.1.3 paho-mqtt-2.1.0 pi-heif-0.20.0 pi3d-2.52 picframe-2024.11.1 pysdl2-0.9.16

Configuring PictureFrame

Now configure PictureFrame. You will be asked three questions for the basic configuration settings. Just hit Enter to keep the default for now. You can always change these settings later.

mkdir {Pictures,DeletedPictures}

picframe -i /home/pi/

When

This will configure  /home/pi/picframe_data/config/configuration.yaml
To keep default, just hit enter
Enter picture directory [~/Pictures]:
Enter picture directory [~/DeletedPictures]:
Enter locale [en_US.UTF-8]:

appears, hit Return three times to accept the default. You can always change these settings later.

You don’t need to make changes in the configuration file at this point. But you probably want to customize it later. In that case, open it with

nano ~/picframe_data/config/configuration.yaml

and make your changes.

Starting PictureFrame

Starting PictureFrame is a bit more complex than before, but Helge did a great job hiding the complexity with a few scripts.

Enter

nano start_picframe.sh

and paste the paragraph below

#!/bin/bash
source /home/pi/venv_picframe/bin/activate # activate phyton virtual env
picframe &  #start picframe

Save and close and make the file executable with

chmod +x ./start_picframe.sh

You can now test if PictureFrame works by entering

./start_picframe.sh

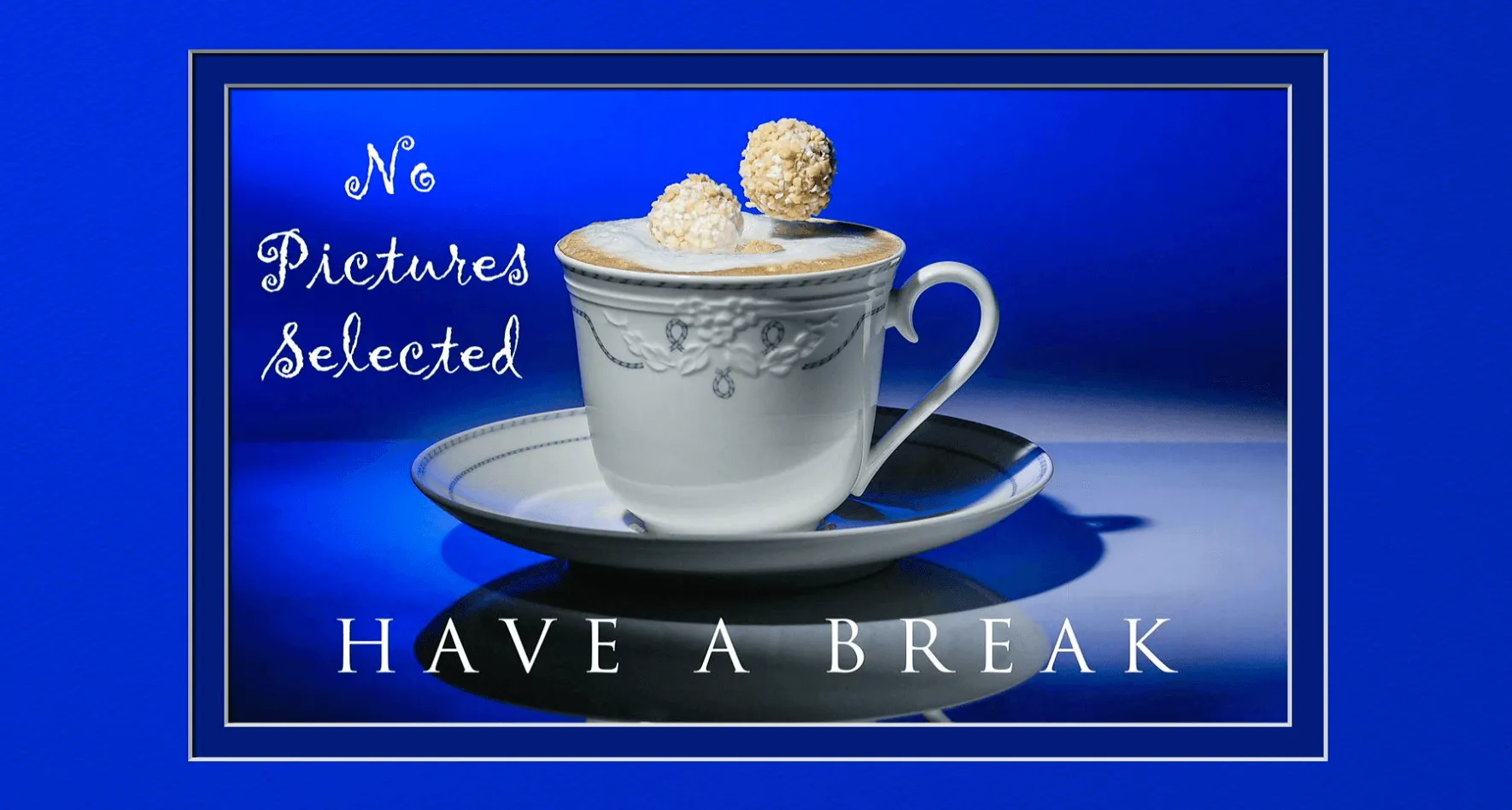

If you can see the image below, you have successfully installed Pi3D PictureFrame on Raspberry Pi Bookworm!

You can ignore the error message ERROR:model.Model:error trying to set locale to en_US.UTF-8.

To stop the script, just enter sudo reboot in Terminal.

You could also look for the process number with ps aux | grep picframe and then kill xxx, with “xxx” being the “/home/pi/venv_picframe/bin/python3 /home/pi/venv_picframe/bin/picframe” process. But a reboot may just be easier for now.

Autostarting PictureFrame

To start PictureFrame at boot, create an autostart config file.

mkdir -p ~/.config/labwc

nano ~/.config/labwc/autostart

and paste the paragraph below

/home/pi/start_picframe.sh

Next, create an rc.xml config file with

nano ~/.config/labwc/rc.xml

and paste the paragraph below

<windowRules>
    <windowRule identifier="*" serverDecoration="no" />
</windowRules>

Finally, create a user systems service to start picframe on boot

mkdir ~/.config/systemd/user/ -p

nano ~/.config/systemd/user/picframe.service

and paste this paragraph

[Unit]
Description=PictureFrame on Pi

[Service]
ExecStart=/usr/bin/labwc
Restart=always

[Install]
WantedBy=default.target

Enable the service and reboot. Don’t forget to connect your display before rebooting.

systemctl --user enable picframe.service

sudo reboot

Add a few pictures to the Pictures directory via the network from another computer (that is why you installed Samba), and they will appear after 200 seconds (the default setting, which you have probably not changed at this point.

Customize PictureFrame to your needs in the configuration.yaml file. For all the details about fine-tuning, read this article or the official wiki documentation.

Et voilà, you got Pi3D Picture Frame running with the latest Raspberry Pi operating system, Bookworm!

Your picture frame installation is now complete. But for tinkering (it never stops), knowing how to control the app’s launch manually is helpful. Here is what you need to know.

More on starting and stopping

Turning the picture frame script on and off is controlled by the systemctl service.

If you want to know more about how this works, I recommend my article, “The ultimate guide on using systemd to autostart scripts on the Raspberry Pi“.

Starting and stopping PictureFrame at boot

• Enable service systemctl --user enable picframe.service
• Disable service systemctl --user disable picframe.service

This setting survives a reboot. If you choose the disable option, you will boot in the console only, and PictureFrame will not start automatically.

Manually starting and stopping PictureFrame

• Start service systemctl --user start picframe.service
• Stop service systemctl --user stop picframe.service
• Restart service systemctl --user restart picframe.service

Conclusion

Congratulations! You have just built the best digital picture frame that no money can buy!

A big Thank You to Helge, Paddy, and all the forum members who have made this migration happen.

Thank you for your support and motivation.
